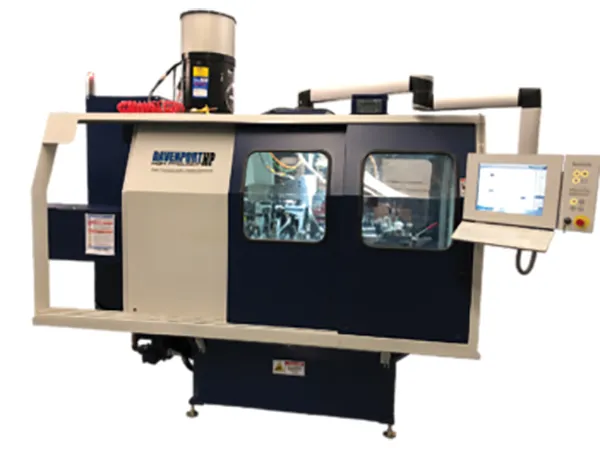

THE DAVENPORT HP

THE DAVENPORT HP

The Davenport HP is the screw machine of choice for hundreds of manufacturers worldwide requiring increased productivity in small parts manufacturing.

Davenport HP owners can now meet global production level demands with the speed, accuracy and flexibility of the Davenport HP machine.

The Davenport HP is the ideal machine for long or short runs of small parts and is now equipped with new features for improved quality and increased accuracy.

A powerful PLC controller offers shorter set-up times and allows operators to concentrate on producing parts rather than making adjustments.

Features

• • Comes standard with High-Precision HP Head.
  • Faster return on investment due to low machine cost
  • Fastest cycle times with index times as fast as 0.3 seconds and programmable index points.
  • More up-time, less maintenance parts
  • Easy set-up with full enclosure front and back sliding doors
  • Spindle speeds infinitely variable from 0-3800 RPM
  • Servo Threading attachment standard
  • Simple Servo motion control has up to 6 axes of control and stores 100 job summaries on board with the ability to import/export to USB memory card
  • Operator training reduced to a matter of days
  • Optional web server provides remote machine monitoring
  • Optional Servo Burring and 2-Position Back Working attachments eliminate many secondary operations

The Davenport HP operates with a simple PLC-based control and multiple Servo drive systems that eliminate over 150 parts from the original, mechanical Model B machine. The results are reduced set-up times and higher production rates.

• • Up to 6 axes of control
  • Stores 100 job summaries on board with ability to import/export to USB memory card
  • Easy to learn
  • Optional web server for remote monitoring
