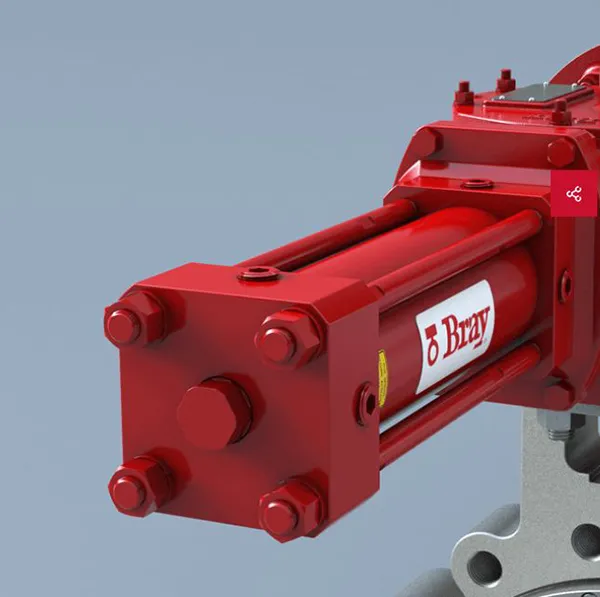

Scotch Yoke Hydraulic Actuator Series 98H

Specifications:-

Output Torque	1,629 to 885,100 in-lb (187 to 100,000 Nm)
Control Options	On/Off, Throttling, Direct Acting, Spring Return
Temperature Range	-50°F to 212°F (-46°C to 100°C)
Power Source	Hydraulic
Pressure Ratings	500 - 3000 psi (35 - 207 bar)
Enclosure Ratings	IP66/IP67M per IEC 60529
Mounting	ISO 5211: 2001(E), MSS SP-101-1989
Supply Media	Hydraulic Fluid (Standard Trim) - ISO VG 32/46, ISO-L-HV, flash point > 157°C
Certifications	ATEX, PED, SIL 3
Testing Standard	EN 15714-4:2009
Options	Symmetrical Yoke, Canted Yoke, Extended Stop, Hydraulic Override, Jack Screw, Jack Screw Gear Driven Override,
Applications	Emergency Shutdown
Valve Compatibility	Ball Valves, Butterfly Valves

Features & Benefits

Bray's engineering excellence and precision manufacturing have produced the Series 98 hydraulic actuator, part of our modular, fully configurable product line optimized for direct mounting on Bray valves for flexibility and efficiency at reduced cost. Series 98 actuators were designed primarily for hydraulic operation to a maximum pressure of 3000 psi (207 Bar) and for temperature ranges of -50°F (-46°C) to 212°F (+100°C).

Features

Compact design offers a high torque to weight ratio
Modular Design offers easy configuration in the field
Module alignment ensured by precision machined centering rings
Torque Output ranging from 1,629 to 885,100 in-lb (187 to 100,000 Nm)
Spring End Torque ranging from 2,744 to 445,261 in-lb (310 to 50,306 Nm)
Standard premium epoxy/polyurethane coating

Operating Conditions

Pressure Range: 500 - 3000 psi (35 - 207 bar)
Media: Hydraulic Fluid
Temperature Range Options:
- Standard: -20°F to 212°F (-29°C to 100°C)
- Low Temperature: Down to -50°F (-46°C)
- PED: -20°F to 176°F (-29°C to 80°C)
Torque Base: Mounting Dimensions per ISO 5211: 2001(E)
Accessories: Shaft Driven Accessories Mounting per NAMUR-VDE
Performance Testing: EN 15714-4:2009
Ingress Protection: IP67M & IP68 per IEC 60529
Safety: ATEX, SIL 3 suitable, PED on request
