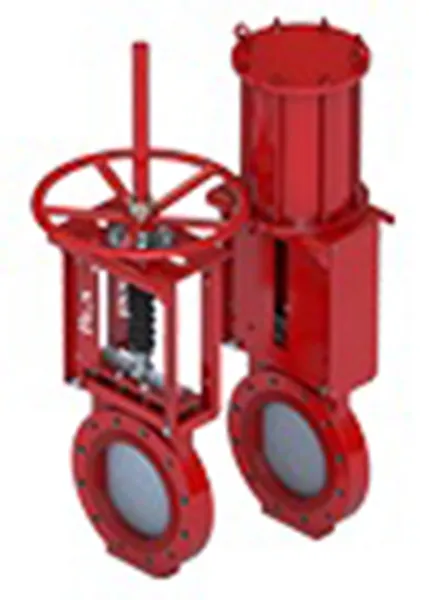

Bidirectional Knife Gate Valve Series 746
Bidirectional Knife Gate Valve Series 746
Specifications
Size Range
2 - 24" (50 - 600mm)
Body Materials
Ductile Iron, CF8, CF8M, CF3M, WCB
Maximum Allowable Operating Pressure
240psi (16bar)
Stem Materials
304 Stainless Steel
Body Style
Single Piece, Wafer
Gate Materials
316, 317, SAF 2507, SAF 2205,17-4PH, Hastelloy® C, Monel®
Liner Maximum Temperature
176°F (80°C)
Design Standard
Manufacturer Standard
Packing Maximum Temperature
Impregnated PTFE: 450°F (232°C)
PTFE/Buna-N: 194°F (90°C)
Testing Standard
MSS SP-151
Certifications
Canadian CRN
Face to Face
Manufacturer Standard
Actuator Options:
Handwheel, Bevel Gear, Pneumatic, Hydraulic, Electric
Features & Benefits
The Series 746 bidirectional knife gate valve features a one piece urethane liner molded throughout the body and chest providing Class VI shutoff in the most abrasive applications. The liner extends over the front face of the body, ensuring total protection from abrasive media and eliminating the need for additional gaskets. The one piece, durable ductile iron body is offered in a compact wafer style for ease of handling and installation.
- Stem Cover
Protective stem cover is standard increasing cycle life in hazardous environments.
- Packing Gland
Live-loaded packing gland extends gate life preventing leakage and discharge from top of valve.
- Body
Standard one piece ductile iron body with molded urethane liner throughout.
- Liner
Urethane body liner is rated up to 80°C/176°F and completely protects valve body from abrasive line media. (UMP 241 90 Shore, PTMEG-TDI)
- Unrestricted Flow Path
Unrestricted flow path with minimal pressure drop achieved through full port valve design for extended valve life.
- Gate
Robust gate available in a wide range of corrosion resistant alloys to suit the application.
- Seat
Seat and port designed to be flush eliminating cavities where media can collect and prevent full gate closure.
