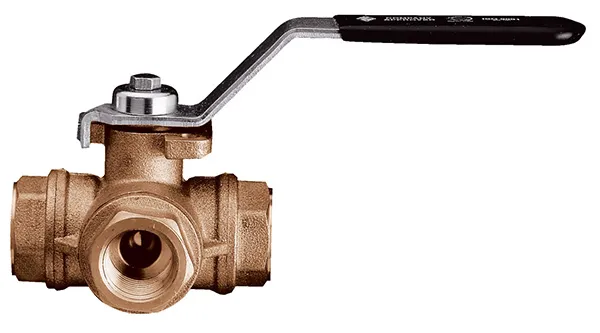

355N (T)
355N (T)
3-way brass ball valve with ISO 5211 pad for actuator, standard port, FNPT.
• Pressure rating 400 WOG-100 WSP.
• Temperature range -4°F to +366°F.
• ANSI B1.20.1 connections.
• Blow-out proof stem, chrome plated brass ball anddouble O-ring stem packing.
• P.T.F.E seats with O-ring backing for low operating torque.
• 100% electronically tested in the open and closed position at 80 psi.
• Not to be used for drinking water.
• Four seat design for sealing between pressurized ports.
355N: LEVER HANDLE - size 1/4” to 3”, “T” flow pattern.
365N: LEVER HANDLE - size 1/4” to 3”, “L” flow pattern.
