Bonomi North America, Inc.

250N SRL

250N SRL

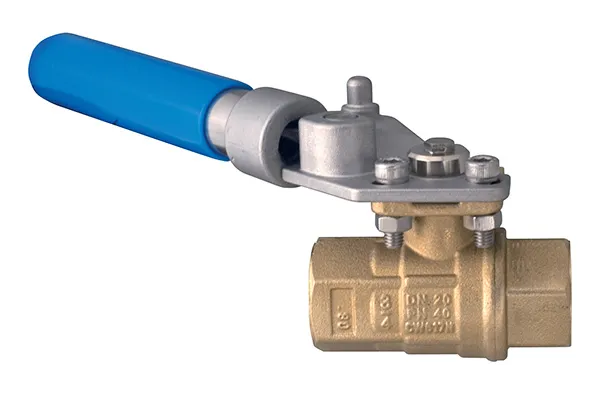

Deadman spring ball valve, full port, FNPT threaded.

• Pressure rating 600 WOG-150 WSP.

• Temperature range -4°F to +366°F.

• ANSI B1.20.1 connections.

• Blow-out proof stem, chrome plated brass ball ball and and double O-ring stem packing.

• PTFE seats with O-ring backing for low operating torque.

• Adjustable spring return lever.

• 100% electronically tested in the open and closed position at 80 psi.

• Not to be used for drinking water.

250N SRL: size 1/4” to 3”.
