Bombas Zeda, S.A.

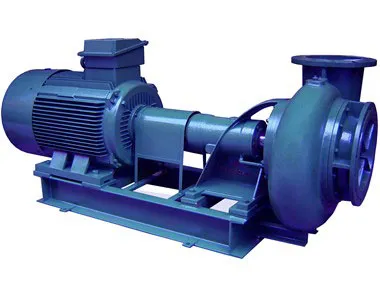

End Suction Pumps-ZS-ZSR Series

Applications

• Supplies in general, industry, cogeneration, conditioning, fire networks, irrigation, fisheries, multiple services fluid clean or lightly loaded.

Materials

• Standard Cast Iron Manufacturing. In total choice can be made partially in Bronze, Stainless Steel, Nodular, etc.

• Closed impeller. In semi-open impeller option.

• IP-55 motors, IP23, ATEX, etc. Standardized I.E.C.

Characteristics

• Speeds between 750 and 1,800 r.p.m.

• Temperatures to 120 º C (248º F) in the ZS and 180 ° C (356ºF) in the ZSR series.

• Sealing by mechanical seal or Soft packed gland.

• The bearing housing with the impeller can be removed without removing the shell from the pipes.

• Flanges DIN-2532 PN-10 or DIN-2533 PN-16. Under clain ANSI-150 or 300 Lb.

• Clockwise rotation seen from the coupling.

• ATEX-certified manufacturing optional.
