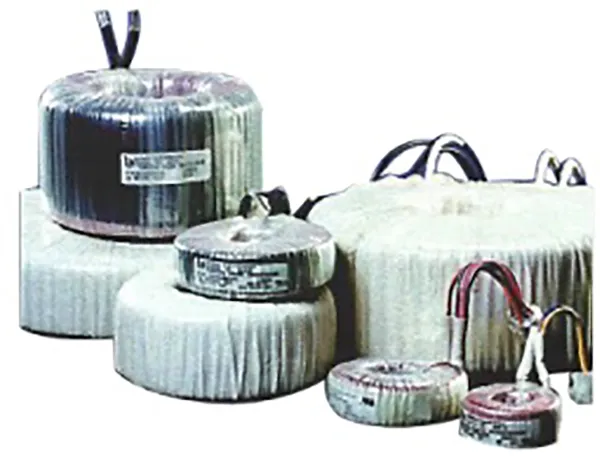

Toroidal Power Transformers

Toroidal Power Transformers

Toroidal power transformers are popular for their low radiated magnetic field and comparable size & weight to VA rating.  Advantages of a Toroidal Power Transformer over other types of transformer platforms are many.  This is especially true of Toroidal Power Transformers compared to typical laminated transformers. The advantages flow to the bottom line; improved performance and lower cost.

Bicron’s power range for Toroidal Power Transformers covers 20VA to 10,000VA.

Whether you select a standard or custom model we will contact you directly to review all performance requirements needed to complete a quotation. Common factors we will review with you include size, power, rating, mounting, height/diameter ratio, lead configuration, agency approval type, insulation and shielding.

Please clarify your choices from the following options when selecting a Bicron Toroidal Power Transformer:

• Bicron Safety agency recognitions include Consumer Electronics UL6500 & IEC60065; General Purpose UL506; Medical UL60601-1.
• Bicron recognized insulation systems: Class B 130°C; Class F 155°C; Class H 180°C.
• Input voltage; 120V or 120/240V.
• Secondary voltage; 120V or 240V, or custom voltage.
• Secondary; single or dual output.
• Frequency; 50/60Hz or 60Hz.
• Temperature range.
• Mounting styles; Type 1, Type 2, Type 3 or Type 4 (see below).
• Quantity required.
