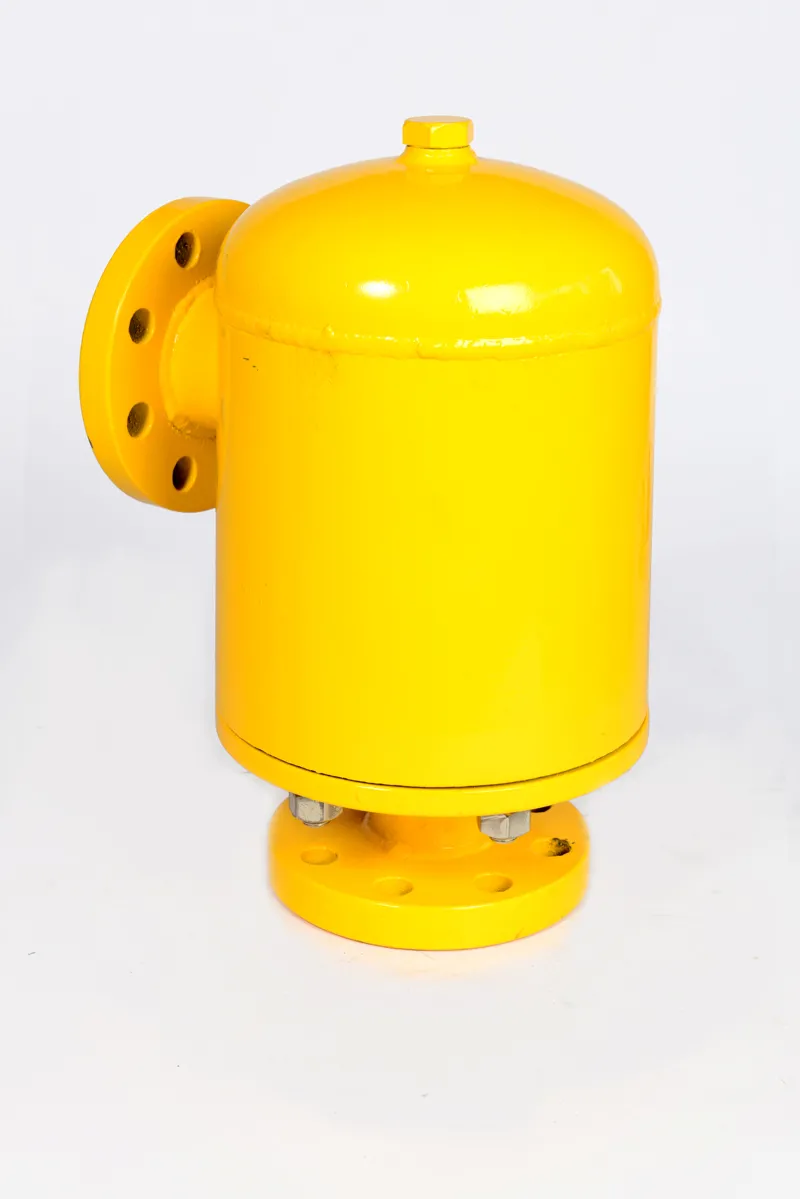

Ball Float Air Vent Valves

BEP Engineering Pvt. Ltd. is the leading Manufacturer of Ball Float Air Vent Valves.

These are designed for automatic removal of air and non-condensable gases from liquid lines. Our Air Vent Valves are suitable for venting of Water / Oil pipelines, process equipment and storage tanks.

Working:

The gas accumulated in the upper part of the valve installed at the highest point creates the pressure and thereby lowers the float which opens the outlet orifice & discharges the gas to the atmosphere.

The plug valve type discharge orifice of vent valve ensures efficient & maintenance free operation with zero leakage.

Technical Specifications:


  • Pressure Range: Up to 63 kg/cm2
  • Sizes: 15 NB to 200 NB
  • End Conn: Screwed / Socket Weld / Flanged


Features:


  • Simple Sturdy Design
  • Less Moving Parts
  • Proportionate Discharge Capacity
  • Suitable of very low differential pressure
  • Available various models


Applications:


  • For Diesel / Petrol / Oil Pipelines
  • For Chilled Water / Hot Water & Fire Hydrant Lines
  • For Brine
  • For Various Chemical Lines
  • For Storage Tank & Process Equipments
