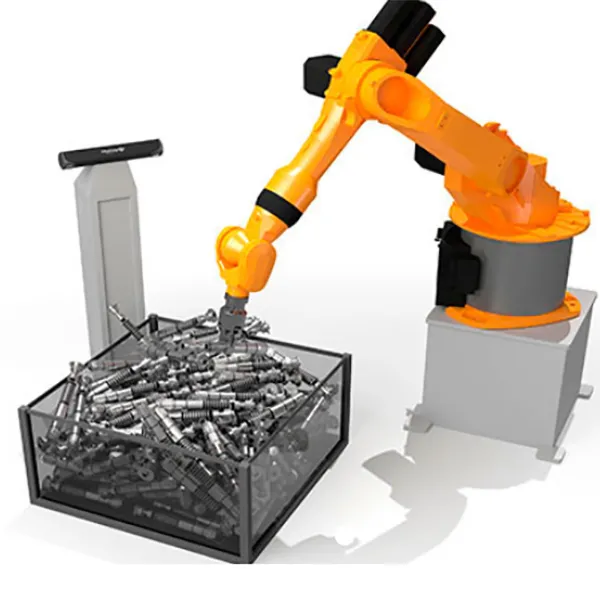

Bin Picking-Picking Vision

Sistema Picking Vision

Picking Vision systems are vision-guided robotics (VGR) solutions for Picking and Bin Picking applications that enable parts to be collected from a belt, container, or pallet.

They use a vision system that recognizes and locates the parts and a robotic system for their extraction and subsequent relocation.

What are the advantages of having robots with vision systems?

• Freedom
• Versatility
• Accuracy
• They do not need positioning stations
• The vision recognizes and locates the position of objects in space, their direction, and dimensions.
• It calculates the trajectories and the movement of the axes, avoiding collisions.

What Picking Vision system do you need?

To get the best solution we must know:

• Collection point, internal and external measurements of the: belt, box, container, pallet.
• Type of parts: From 1 on 1 / structures, random / disordered, reference numbers, measurements, weight.
• Cycle time, what is the desired cycle time?
• Place, final position of the part
• Calculation of trajectories, optional

At Bcnvision we have embraced the most significant characteristics and requirements of the Bin Picking applications to offer you the best solution, suited for your needs and your budget.
