VERTICUS PLUS

VERTICUS PLUS

3- AND 4-STAGEMULTI-FUNCTIONALHIGH-PRESSUREBREATHING AIRCOMPRESSORS

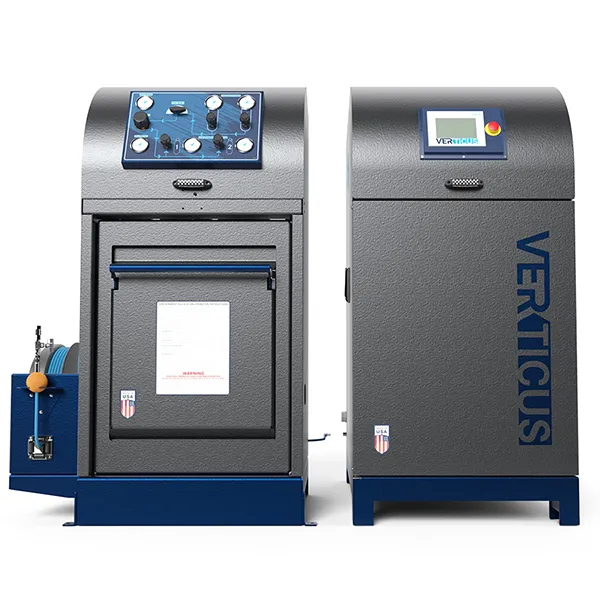

The same package amenities found in the BAUER VERTICUS® high-pressure breathing air compressor system, are combined with a free-standing, aesthetically pleasing, multi-functional fill station module, to create the BAUER VERTICUS PLUS®. BAUER’s performance-proven CFS5.5®-2S NFPA compliant containment fill station; two (2) bank dual function cascade controls; integral air storage rack with two (2) UN code air storage cylinders; 3-way selector valve to select either air from the compressor or onboard air storage system; all come together, creating the ultimate fill station. Install the two (2) modules side by side as an all-in-one configuration or apart, based on the installation site specifics. Flexibility is the key. Look to BAUER to unlock the possibilities.

STANDARD SCOPE OF SUPPLY -  COMPRESSOR MODULE

• BAUER breathing air purification system with SECURUS
• BAUER PLC based controller with 7” color HMI touchscreen display
• NEMA 4 rated electrical enclosure with UL® listed control panel
• Compressor low oil pressure and high temperature safety shutdowns
• Emergency stop push button and automatic start/stop control
• Zero loss automatic condensate drain system with non-corrosive condensate reservoir and integrated float sensor and automatic “full” indication and compressor shutdown
• Interstage pressure gauges (locally mounted)
• Vertically hinged front operations panel and lift-off side maintenance access doors
• Inlet filter maintenance indicator
• Unique hinged front operations panel

STANDARD SCOPE OF SUPPLY -  FILL STATION MODULE

• Two (2) dual function cascade controls
• Two (2) UN code stamped air cylinders installed in an integral rack
• 3-way selector valve
• NFPA 1901 2016 edition compliant 2 position containment fill station accommodates SCBA or SCUBA cylinders up to 31” overall length
• Aesthetically pleasing cabinetry
• Will work with any brand compressor
