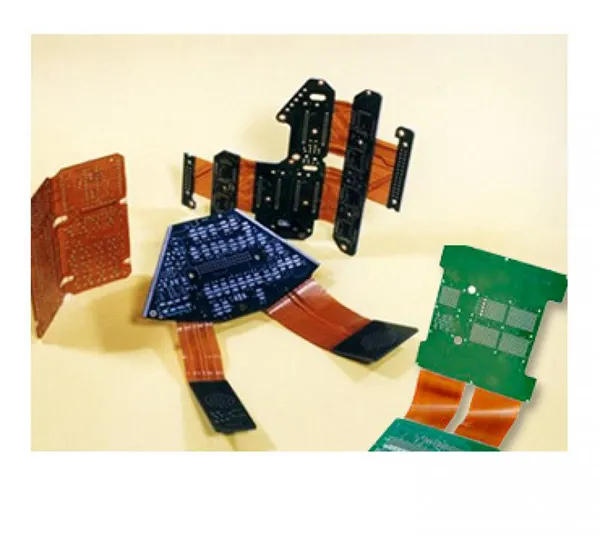

PCB - Rigid flex circuits
PCB - Rigid flex circuits
We make Rigid-Flex pcbs in Kapton + FR4
Flexible Circuits and Rigid-Flex are another of Baselectron's specializations.
We can make 0.1 mm FR4 hoses or 0.05 mm Kapton hoses. FR4 hoses, although they have great limitations compared to Kapton, have a much lower cost.
As regards the Rigid Flex, they can be made of Kapton with stiffener glued, or with multilayer technology FR4 + Kapton + FR4.
Single face
Single-sided, Monolayer, Single side and Monorame are different ways to identify a single-sided printed circuit or with a single layer of tracks.
Double-sided
Double-sided, Bilayer, Double side and Double-sided, are different ways to identify a double-sided printed circuit or with the tracks on both surfaces.
Multilayer
Multilayer, MLB are the names that are used to identify Multilayer printed circuit boards with additional layers of internal tracks.
Solder
Solder resist or Solder Mask is called the normally green protective layer that limits the soldering to the pitches only and also leaves the comb connectors and mechanical contacts uncovered, it is often abbreviated to solder.
