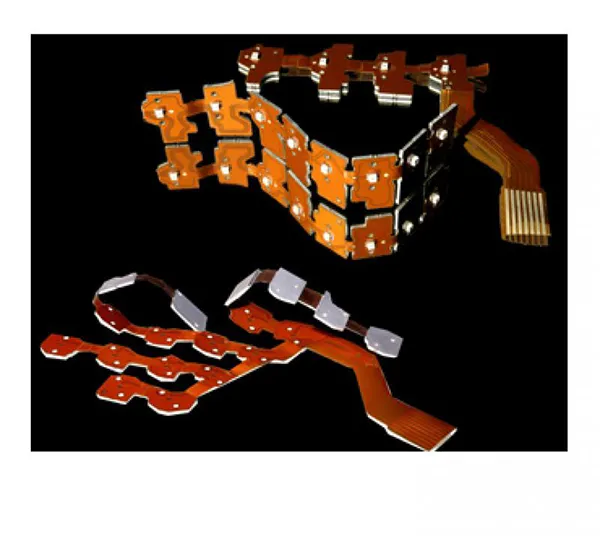

PCB - Flexible circuits with aluminum heatsink
PCB - Flexible circuits with aluminum heatsink
The solution dedicated to the lighting and automotive sector: high quality, low heat
Dedicated to the lighting engineering and automotive sectors, this solution allows you to combine the adaptability of flexible printed circuits with the need to dissipate heat.
The aluminum heatsink can be of the most varied thicknesses, typically 1.5 millimeters, while the flexible printed circuit can be single-blade, double-sided or multilayer, with copper thicknesses of 17, 35 or 70 microns.
Single face
Single-sided, Monolayer, Single side and Monorame are different ways to identify a single-sided printed circuit or with a single layer of tracks.
Double-sided
Double-sided, Bilayer, Double side and Double-sided, are different ways to identify a double-sided printed circuit or with the tracks on both surfaces.
Multilayer
Multilayer, MLB are the names that are used to identify Multilayer printed circuit boards with additional layers of internal tracks.
Solder
Solder resist or Solder Mask is called the normally green protective layer that limits the soldering to the pitches only and also leaves the comb connectors and mechanical contacts uncovered, it is often abbreviated to solder.
