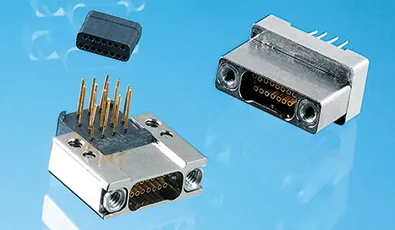

Nanominiature Connectors

In addition to circular and rectangular micro-D connectors and assemblies, Axon’ Cable offers nano-D connectors and jumpers based on the highly reliable Twist Pin contact technology. They are the ideal solution for applications including aeronautics, space, military, medical and off-shore which require extreme miniaturization, reliability, space or weight saving. Nanominiature connectors are based on the Nano-D technology with 0.635 mm (.025") contact spacing and nanominiature shells. The performances of the nano-D connectors offered by Axon’ are based on the MIL-DTL-32139 specification which is a guarantee of interchangeability or intermateability between suppliers.

Advantages

• For applications where the space available is extremely limited: space and weight saving.

• Reliability.

• Long-term performance.

• ESCC 3401/086 EPPL 2 approved.

• Successfully tested to MIL-DTL-32139

• MIL-DTL-32139 qualified nano-D connectors: male and female pigtails made with 9,15,21,25,31,37 and 51 ways
