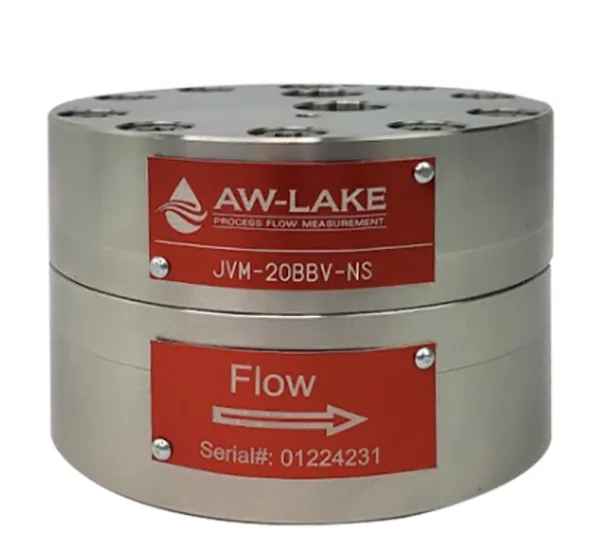

JV-BB POSITIVE DISPLACEMENT FLOW METERS
BUILT TO DELIVER ACCURATE, RELIABLE FLOW DATA IN THE FORMAT YOU NEED
The JV-BB Positive Displacement Flow Meter is part of AW-Lake’s “Next-Generation” line of Gear Meters and is the result of decades of experience, listening to customers and extensive and diligent study of the latest technologies available. These high performance flow meters have tighter machining tolerances, higher resolution, higher pressure rating, and improved accuracy over their predecessor the JV-KG meter and as a result, reduce operational costs. This meter maintains high accuracy and repeatability, despite changing viscosity conditions, up to ±0.25% accuracy with select sensors. Applications well suited to the JV-BB meters include chemical injection & dosing systems, fuel measurement, test stands, hydraulic positioning systems, and coolant & lubrication monitoring.
KEY FEATURES
•Measuring Accuracy:
±0.5% over full range with 30cP fluid, ±0.25% optional with select sensors
•Six Flow Ranges:
0.005 - 120 gallons per minute | 7.2-172,800 gallons per day (see specs below for ranges of each meter size)
•Pressure Rating:
Up to 6,000 psi
•Calibration:
7-point logarithmic calibration
•Output Options:
Wide variety of options: see "Choose Your Sensor" tab below for details
