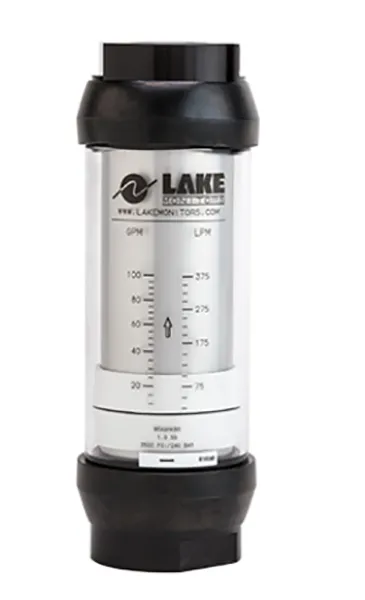

BASIC VARIABLE AREA FLOW METER

The LAKE Basic Inline Variable Area flow meter is ideal for monitoring pump performance and oil or water flows through hydraulic circuits and cooling systems. Often referred to as “rotameters,” Lake’s Basic meters are a low cost alternative to other flow meter types and are available in numerous materials of construction, including aluminum, brass and stainless steel to meet system and media requirements. The superior design not only makes this flow meter weather-proof for outdoor environments and wash-downs, but also reliable offering maintenance-free performance.

KEY FEATURES

Measuring Accuracy:±2.0% of full scale

Flow Measuring Range:0.1-150 GPM (0.5-550 LPM)

Maximum Operating Pressure:Aluminum and brass meters: 3500 PSIG (240 Bar) Stainless steel meters: 6000 PSIG (410 Bar)

Maximum Operating Temperature:240°F (116°C) Note: for operation to 600°F (316°C), see our High Temperature Data sheet.
