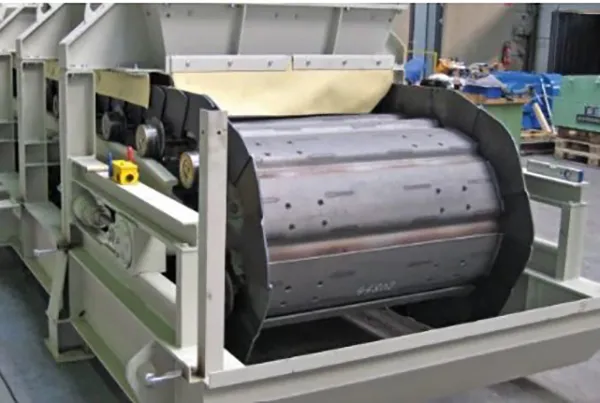

Apron Feeders
Apron Feeders
Apron Feeders type BPB, BPB-S, and BPB-SF
Flexible solution for Crusher Feeding, Wagon Unloading, Hopper Discharge or Stockpile Discharge
AUMUND Apron Feeders type BPB, BPB-S and BPB-SF offer a wide range of applications for various feeding, unloading and discharging objectives. These Apron Feeders are particularly well adapted to provide solutions for the conveying of moist and sticky bulk materials, such as clay, gypsum, anhydrite, and pozzolana among others, as the slightly arched plates of the Apron Feeder allow cohesive materials to be scraped off easily. The conveyors are equipped with forged chains and wear-resistant components. The plate, chain and roller design is configured to suit the specific task and the required conveying capacity.
Ultra-Heavy-Duty Apron Feeders type BPB-SF
The machines are completely assembled and test run on AUMUND premises, and transported as a pre-constructed unit to site for easy installation and fast commissioning.
Functions and characteristics
- Plate widths up to 4,000 mm
- Length up to 50 m
- Inclination up to 27°
- Capacity up to 10,000 tph
- Variable speed drive for metering
- Tailor-made machines with a large range of sizes and parameters
Materials
- Iron ore
- Copper ore
- Gold ore
- Other types of ores
- HBI briquettes
- Iron pellets
- Coal
- Limestone
- Clay
- Lime
- Natural and FGD gypsum
- Petcoke
- Aggregates
Apron Feeder type BPB-SF Special options: Lump breaker
- For breaking up and homogenisation of accumulated material (necessary for on-going weighing and metering)
- Spillage conveyor for containment of fines can be designed as a scraper chain or as a belt conveyor
- Integrated material guides ensure controlled material flow and accurate distance between the hopper structure and apron surface
- Depending on material properties, guides are equipped with adequately wear-resistant linings
- Control and automation unit for control of drive, coupling, lubrication and weighing systems
- Impact beams which have polymer liners and automatic lubrication over their entire length
