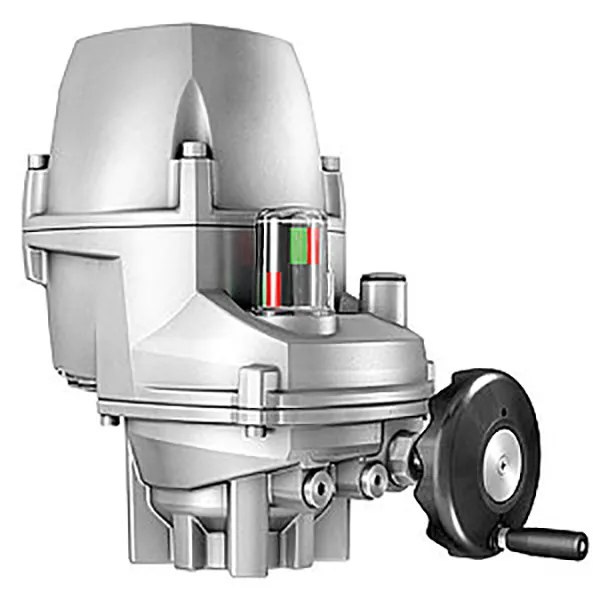

PROFOX PF-Q

PROFOX PF-Q

One solution for butterfly, ball/plug and globe valves. Compact actuators with intelligent functions as platform concept for tailored automation solutions.

Each PROFOX is equipped with a centrally located LED: The FOX-EYE. It provides clearly visible information about both actuator and valve status. The FOX-EYE display scheme can be configured by the user as required.

Multi-turn version PROFOX PF-M

AUMA´s flexible platform for intelligent valve automation

Design features

• Open-close duty and modulating duty
• End position setting via push buttons or AUMA Assistant App
• Torque range between 32 Nm to 600 Nm
• Depending on operating time and size, adjustable in 9 steps
• Limit and torque sensing
• Handwheel for manual operation
• Wide range power supply unit
• Variable speed assuring premium control accuracy
• Mechanical position indication for 90° or 120°

Ambient conditions

• Large temperature range between –30 °C and +70 °C
• Premium enclosure protection IP67, IP68
• High grade corrosion protection up to C5-M/C5-I
• Robust metal housing

Interfaces

• IIoT ready, easy integration into DCS
• Position transmitter
• Profibus, Modbus

Advantages

• Low standby consumption
• Actuator and valve diagnostics
• Predictive maintenance
• Easy installation & intuitive commissioning at the device and via App
• Clear position indication, FOX-EYE (indication LED)
