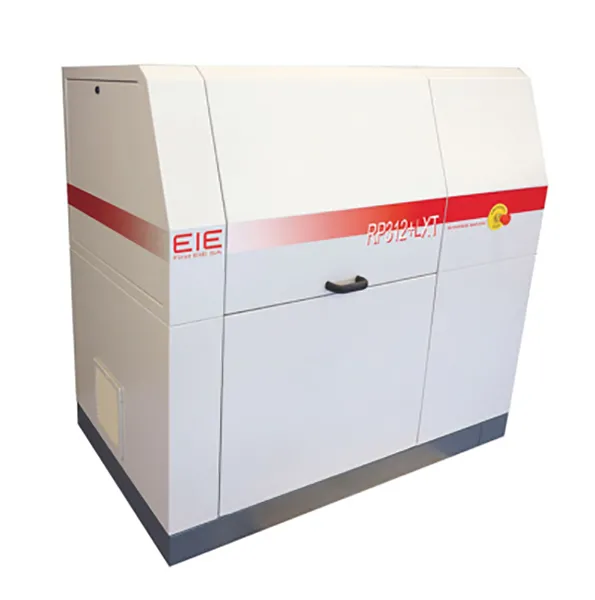

Photo Plotter

Photo Plotter

General description

• In the printed circuit manufacturing industry and in the graphic industry, photoplotting is the first step in making photolithographic masks and chemical etching.
• The Efficient RP line of photoplotters retains the same general principles that have made the worldwide reputation of the previous models while introducing a significant leap forward in speed and quality.
• The Photoplotter family reaches amaximum resolution of 50,000 DPI.
• The large format and high definition are the result of continuous research to meet the highest demands in the world of PCB production, graphics and chemical metal engraving.

TECHNICAL DATA

• Low drum speed. Max 110 rpm
• No Vibrations. No distortion of the film
• Perfect adhesion of the film
• Simple and reliable construction
• Competitive cost
• Compact footprint
• Full automation
• Short loading – unloading time
• High precision
• High productivity
