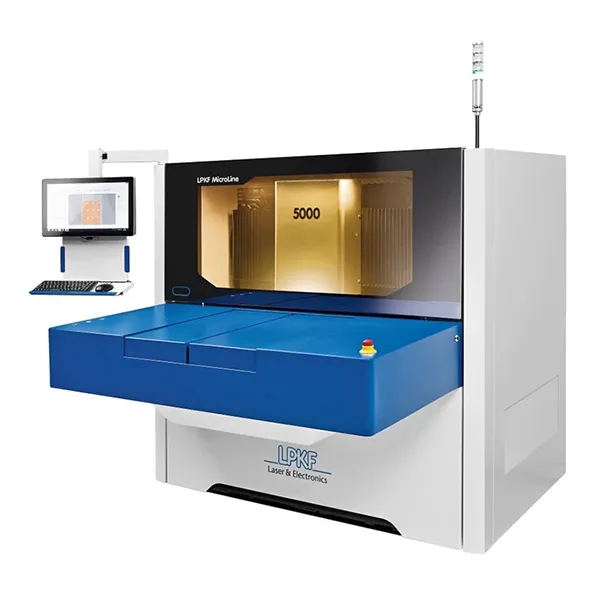

Laser Cut UV

Laser Cut UV

Description

The UV laser developed by LPKF, is perfect for precision cutting and working of different materials such as flexible PCBs, IC substrates, high density PCBs etc…

Discover the whole range of our solutions of Laser Cut UV

GENERAL INFORMATION

Common applications include drilling through holes and / or blind holes, cutting coverlay, prepeg and polyamide.

Technical data

• Laser Class: 1
• Working area (X x Y x Z): 533mm x 610mm x 11mm (21 ″ x24 ″)
• Format; max reel width: 533mm x 610mm (21 ″ x 24 ″); 500mm (19.6 ″)
• Position Accuracy: +/- 20um (0.8 Mil)
• Laser beam diameter: 20um (0.8 Mil)
• Laser wavelength: 355nm
• Power supply: 400VAC, 3-PHASE, 50-60 Hz, 16 A, 6.5 kVA
• Cooling: Air-cooled (internal water-air cooling)
• Outdoor temperature: 22 ° C +/- 2 ° C
• Humidity:
