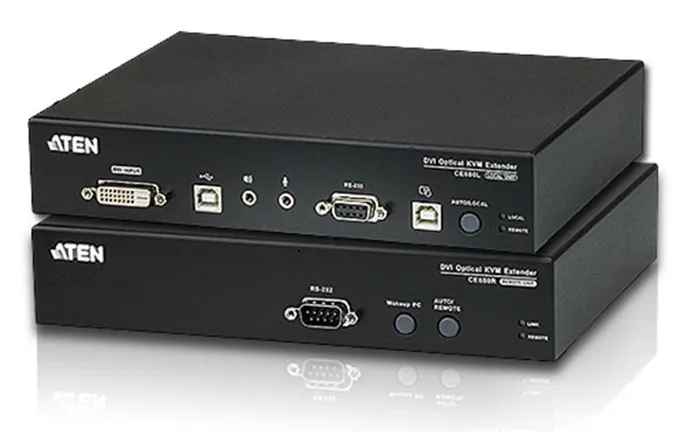

KVM Extenders CE680

KVM Extenders CE680

Allows access to a computer or KVM installation from a local / remote console, Supports DVI-D interface and allows transmission of DVI single-link signals, Superior video quality of up to 1920 x 1200 @ 60 Hz (24-bits) - get an excellent, crisp image on your screen over long distance transmissions up to 600 m*, Touchscreen support - connect a generic touchscreen, including devices up to 10-point multi-touch, to accommodate highly interactive applications (no extra drivers needed), Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles, Uses one fiber optic cable to connect the local and remote units, HDCP compatible

KVM Extenders CE680 Characteristics:



 RS-232  1 x DB-9 Female (Black)        1 x DB-9 Male (Black)
 Power  1 x DC Jack (Black)              1 x DC Jack (Black)
 Unit To Unit  1 x bi-directional SFP (LC)    1 x bi-directional SFP (LC)
 Operating Distance  600 m with (SM) fiber            600 m with (SM) fiber
 Wavelength  1310/1550 nm for SM 1310/1550 nm for SM
 Data Rate  Single fiber: 3.125G bps         Single fiber: 3.125G bps
