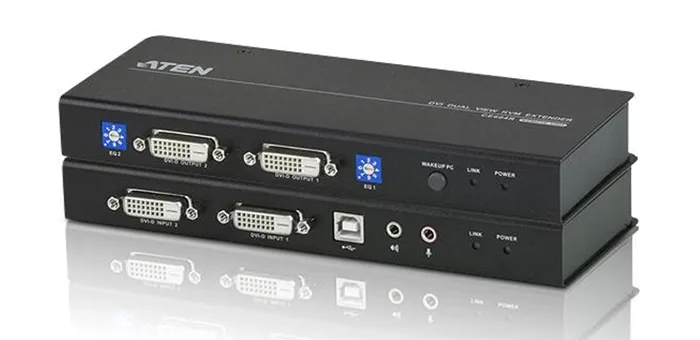

KVM Extenders CE604

KVM Extenders CE604

Local and Remote Units connect at distances up to 60 m using two Cat 5e cables, Transmit speaker, keyboard, mouse, DDC and one DVI via one Cat5 cable; RS-232, microphone and another DVI by adding a second Cat 5e cable, Supports Dual View video source transmission (one PC with two video output ports), Audio Enabled – supports stereo speakers and microphone, Supports Real DDC bypass and ATEN default EDID technology – set up various configurations via hotkeys, Supports PC wakeup function via one pushbutton or hotkey, RS-232 serial channel – connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate up to 9600 bps), Compatible with other ATEN Dual View KVM devices, such as CS1642A/ CS1644A and CS1762A/CS1764A

KVM Extenders CE604 Characteristics:



 RS-232  1 x DB-9 Female (Black)        1 x DB-9 Male (Black)
 Power  1 x DC Jack (Black)               1 x DC Jack (Black)
 Sub / Main  2 x RJ-45 Female (Black)       2 x RJ-45 Female (Black)
 Operating Temperature  0–50°C            0–50°C
 Storage Temperature  -20–60°C         -20–60°C
 Humidity  0–80% RH, Non-condensing  0–80% RH, Non-condensing
