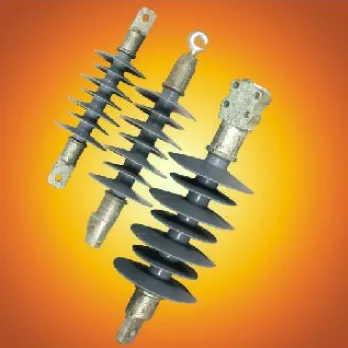

25kV COMPOSITE INSULATORS

FEATURES

• The use of Polymeric/Silicone Rubber base insulators have several advantages over the conventional ceramic insulators eg: light weight, unbreakable, hydrophobic, resistant to ozone & UV radiations, resistant to earth quake shocks , self deaning properties & resistant to vanda lism.

• Manufactured to I EC 61109 & RDSO specifications TUSPC/OHE/INSCOM/1070.

• The external sheds are moulded from Silicone rubber on the latest state of the art injection moulding machinery from Desma Germany. The sthcone rubber is procured from world renowned companies across the world.

• The end fittings which are intended to connect to a supporting structure or to a conductor are made up of malleable cast iron BM:350 of IS 14329 or SG cast iron conforming to grade 400/151 of IS 1865 iron and are duly Hot dip galvanized to a min of 750-10009/m2as per RDSO specifications.

• The metal end fittings are crimped on microprocessor controlled automatic hydraulic crimping machines. • The creepage distance offered is 1050 mm i.e. 20 mm/kV suitable for medium polluted areas. The insulators are available in various types of end fittings like 9 tonne, Stay Arm & Bracket tube varieties…
