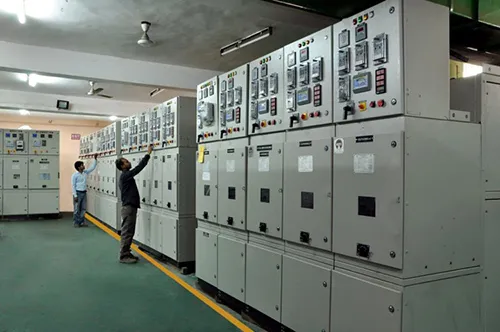

11-36KV VACUUM CIRCUIT BREAKER PANELS

Product Preview

It consists of manual/motor operated spring charged mechanism of stored energy type.

In the closed state of breaker, the closing spring can perform the duty operation. Facility is also available for hand charging the springs in the event of control supply failure. The closing spring is charged in less than 15 sec. Electrical Anti-pumping feature is also provided.

The mechanism is trip free and suitable for rapid Re-closing. The vacuum interrupters are capable of switching capacitive currents and small Magnetizing current.

Salient Features

• Conforms to IS2147. IEC-62271-100, IEC-· 60298 & IEC-60694.

• Fully compartmentalized & internal arc

• compliance as per standards.

• Emergency tripping arrangement without

• opening the breaker chamber front door.

• Extensible & modular construction.

• High reliability.

• Re-strike free.

• Horizontal isolation, horizontal drawn-out.

• Self aligning type cluster contacts for robust design.

• Stored energy type spring closing mechanism.

• Fully interlocked for operational safety.
