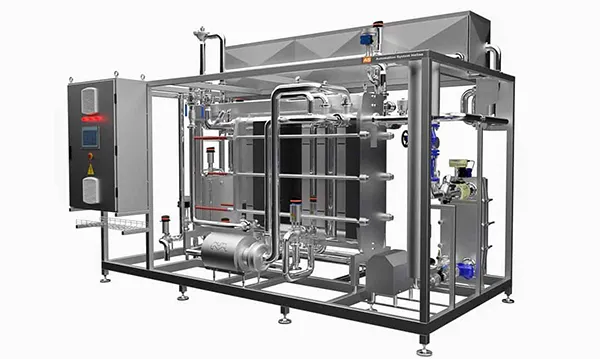

GALAXIAS Automatic Milk Pasteurization Unit
The automatic milk pasteurization solution for all size plants. It has integrated all the equipment and connections for external equipment (separator, homogenizer, deodorizer, standardization unit for fat content, large holder etc.) and it is ready for operation. All the functional parameters can be adjusted by the operator. It is supplied with different automation levels while it can easily be integrated in any plant.
Mechanical Specifications
Description
GALAXIAS
Capacity
From 10 m3/h up to 25 m3/h
Tanks Capacity
From 200 Lt up to 500 Lt
Materials Quality
Stainless Steel 316L
Dimensions L x W x H
From 3.000 x 2.000 x 2.400 mm Up to 4.000 x 2.000 x 2.400 mm
Steam Consumption
From 100 kg/h at 3,5 bar
Water Consumption
From 2.000 Lt/h
Air Quality
Oil-free compressed air at 7 bar
Power
From 5 KW, 400VAC, 50Hz
Working Temperature
72-92οC
Weight
From 2.000 kg
