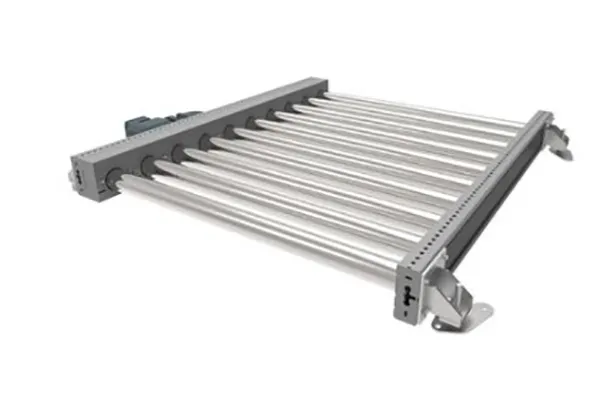

ROLLER CONVEYOR LOW SHAPE
ROLLER CONVEYOR LOW SHAPE
DESCRIPTION
PALLET HANDLING
ROLLER CONVEYOR
LOW SHAPE
SIDE FRAME
Reinforced double formed 3 mm S235JR frame, powder coated RAL 9006.
CONVEYOR ROLLERS
Ø 89 mm x 3mm roller, zinc plated finish.
Ø 76 mm x 3 mm roller, zinc plated finish.
Roller lengths 930 mm, 1130 mm, 1330 mm.
Pallet guide-rings, on specification.
ROLLER PITCH
150mm and 175mm.
MAXIMUM LOAD
From 1 to 2 1500kg pallets per conveyor.
GEARMOTOR DRIVE
SEW Gearmotor 230/400V / 50Hz / 3 phase rated voltage, IP55, CE.
SEW Gearmotor 230/460V / 60Hz / 3 phase rated voltage, IP55, UR.
SEW Gearmotor 330/575V / 60Hz / 3 phase rated voltage, IP55, CSA.
CONVEYOR SPEED
12 m/min / 39.37 ft/min.
Load Travel Direction – Bidirectional.
Conveyor Supports – Included
OPERATING TEMP.
5°C to 50°C / 41°F to 122°F
