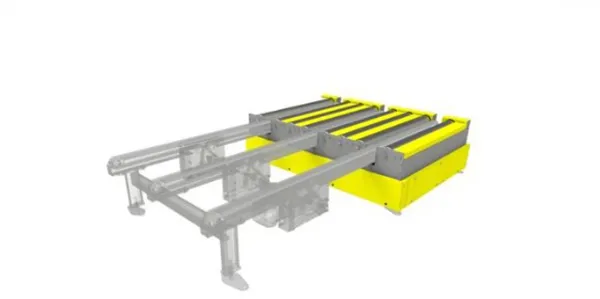

PALLET TRANSFER SYSTEM
Industrial
DESCRIPTION
PALLET HANDLING
DOUBLE LEVEL TRANSFER
STRUCTURE
S235JR steel, powder coated RAL 9006 / RAL 1021
TOP-OF-ROLLER, TOP-OF-CHAIN HEIGHT
450 mm to 600 mm with ± 15 mm mechanical adjustment
MAXIMUM LOAD
1,500 kg / 3,300 lb uniformly distributed.
ROLLER CONVEYOR GEARMOTOR DRIVE
SEW Gearmotor 230/400V / 50Hz / 3 phase rated voltage, IP55, CE.
SEW Gearmotor 230/460V / 60Hz / 3 phase rated voltage, IP55, UR.
SEW Gearmotor 330/575V / 60Hz / 3 phase rated voltage, IP55, CSA.
ROLLER CONVEYOR SPEED
12 m/min / 39.37 ft/min
DISTANCE BETWEEN STRANDS
460 mm, 475 mm, and 525 mm.
VERTICAL MOVEMENT GEARMOTOR DRIVE
SEW Gearmotor 230/400V / 50Hz / 3 phase rated voltage, IP55, CE.
SEW Gearmotor 230/460V / 60Hz / 3 phase rated voltage, IP55, UR.
SEW Gearmotor 330/575V / 60Hz / 3 phase rated voltage, IP55, CSA.
LIFTING TIME
Approx. 4 sec.
Load / Pallet Travel – Bidirectional on the roller and chain conveyors.
Limit Sensors – Sick IME12. Sensors included.
Electrical Connections -Prewired chain motor, lift motor and sensors to junction box.
OPERATING TEMP.
5°C to 50°C / 41°F to 122°F.
