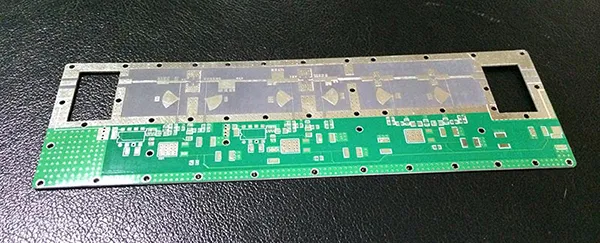

Taconic TLX series

Taconic TLX series

Why choose Taconic ?

• Taconic is the largest production of PTFE CCL manufacturer in the  world,
• Have patent of a uniform coating of PTFE on glass woven,
• Taconic is a leader of the PTFE CCL microwave technology in the industry,
• The microwave dielectric constant CCL from 2.17 to 10.0,
• Taconic occupied the market share more than 80% in the global antenna PCB materail.

Taconic TLX series high frequency RF PCB detail

• TLX-0 DK 2.45+/- 0.04 Dielectric Thickness 0.127mm – 6.35mm
• TLX-9 DK 2.50+/- 0.04 Dielectric Thickness 0.050mm – 6.35mm
• TLX-8 DK 2.55+/- 0.04 Dielectric Thickness 0.064mm – 6.35mm
• TLX-7 DK 2.60+/- 0.04 Dielectric Thickness 0.089mm – 6.35mm
• TLX-6 DK 2.65+/- 0.04 Dielectric Thickness 0.089mm – 6.35mm
• Taconic TLX offers reliability in a wide range of RF applications.This material is versatile due toits 2.45 – 2.65 DK rangeAnd, available thicknesses and copper cladding.
• It is suitable for low layer count microwave designs.TLX PTFE fiberglass laminates are ideal for use in radar systems,Mobile communications, microwave test equipment,microwave transmission devices and RF components.
• TLX is a workhorse in the RF microwave substrate world whereThe fiberglass offers mechanical reinforcement,Wherever a substrate experiences severe environments,Such as: resistance to creep for PWBs bolted to a housing that encounter highlevels of vibration during space launch.
• High temperature exposure in engine modules, radiation resistance in space(see NASA’s website for low outgassing materials),Antenna for warships that undergo extreme environments at sea andA substrate for altimeters that see a wide range of temperatures during flight.
• The wide range of dielectric constants available enable theManufacture of couplers, splitters, combiners, amplifiers,antenna and other components.
