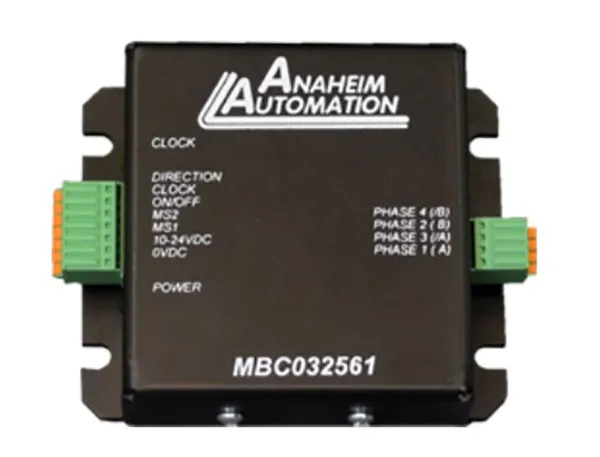

MBC032561 - Stepper Drivers with DC Input
Compact Microstep Driver
Selectable Divisors of 2, 8, 64 and 256
Detachable Terminal Blocks
0.0-3.0 Amp Output Current
Compatible with Size 8, 11, 14, 17, 23 and 24 Frame Stepper Motors (model dependent)
24VDC Compatible Input Signals
Sinking and Sourcing Inputs
10-24VDC Operating Voltage
Low Cost - Excellent Value
Easy to Install
RoHS Compliant
Stepper Drivers with DC Input - MBC032561
The MBC032561 is a small, fully enclosed stepper motor driver perfect for applications where space is precious and smooth motion is required. With a small footprint and divide by 256 microstepping, this driver provides great smoothness, performance and flexibility for a driver its size. The MBC032561's greatest asset however, is how easy it is to use. The detachable spring loaded terminal blocks make it simple to install and eliminates the additional connector and cable accessories commonly associated with compact stepper drivers. The MBC032561 has divisors of 256, 64, 8 and half step. A power supply is required and must be purchased separately.
