American-Marsh Pumps

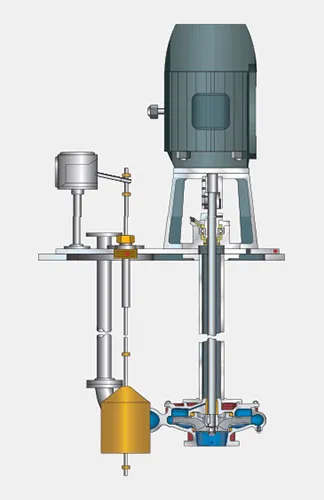

320 Series Srem Vertical Sump Pumps

Series & Model

Vertical sump pumps are used in a variety of aggressive applications. These pumps are used in commercial, industrial and municipal applications every day. The SREM series vertical process pumps feature heavy-duty casings, oversized shafts, short bearing spans, optional metallurgies and lineshaft bearing material flexibility.

Performance Characteristics

Capacities to: 9,000 GPM (2,044 m^3/hr)

Heads to: 450 Feet (140 m)

Temperatures to: 300 F (150 C)

Speed ranges: 1200 to 3600 RPM

Features & Benefits

• Heavy-duty casings and impellers.

• Available standard in Cast Iron/Iron fitted or other alloy for application versatility.

• Replaceable wearing components include casing wear rings to maintain peak efficiency.

• Enclosed impeller design, dynamic balancing and renewable wear rings reduce losses increasing performance and pump life.

• 125 lb. ANSI flange suction/discharge connections.

• Heavy-duty, grease lubricated thrust bearing and oversized lineshaft and inboard head bearings.

• Lineshaft bearings can be supplied in bronze, cast iron, carbon graphite, Teflon or metal backed marine material.

• Pump setting flexibility to depths of 25+ feet.

• Optional stuffing box.

• 4 foot to 5 foot maximum lineshaft bearing spans.

• Internal lubrication for flushing lineshaft bearings.

• Optional oil filled support column.
