American-Marsh Pumps

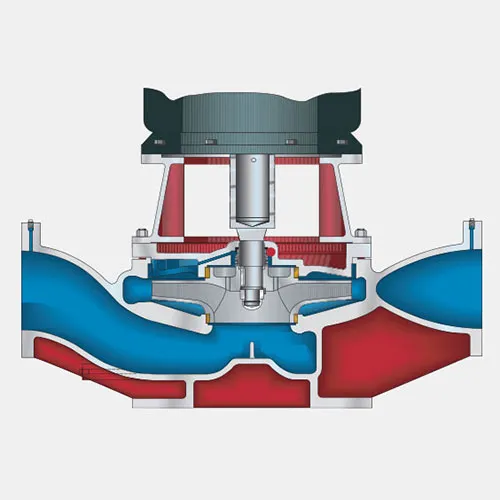

310 Series REI Vertical Inline End Suction Pumps

Series & Model

General purpose inline end suction pumps are used in commercial, industrial and municipal applications every day. The RE series end suction products feature back pull out impellers, inline suction and discharge, casted integral base on all casings with heavy casing thickness, impellers with back pump out vanes and oversized shafts to provide the end user with a superior, reliable product.

Performance Characteristics

Capacities to: 9,000 GPM (2,044 m^3/hr)

Heads to: 450 Feet (140 m)

Temperatures to: 300 F (150 C)

Speed ranges: 1200 to 3600 RPM

Features & Benefits

• Back pull-out to reduce maintenance down time.

• Standard American-Marsh Series 810 mechanical seal for both reliability and dependability.

• Carbon/Si-Carbide/Viton elastomers standard, with other faces and elastomers available.

• Integral seal flush.

• Available standard in Cast Iron/304SS fitted or other alloy for application versatility.

• Replaceable wearing components include casing wear rings to maintain peak efficiency.

• Enclosed impeller design, dynamic balancing and renewable wear rings reduce losses increasing performance and pump life.

• Vertical inline 125 lb. ANSI flange suction/discharge connections with centerline discharge and cast integral base on casing for support. Suction and discharge flanges are casted to 250 psi dimensions. Case working pressures for all REI models is 250 psi.

• Standard, stocked c-face motors for quick shipment

• Pumps can be stocked and shipped less driver allowing more flexibility for the end user.

• C-face motor bracket allows the removal of the driver without disassembling entire pumping unit.

• Impellers have back pump out vanes to keep the seal chamber free of debris.
