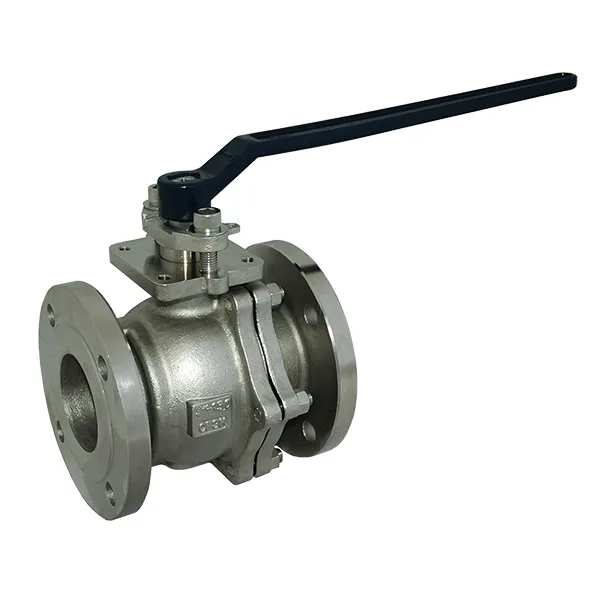

9100 Series – 2 Piece, Full Port, Fire Safe, ANSI Class 150 or 300 Flanged Ball Valve
9100 Series – 2 Piece, Full Port, Fire Safe, ANSI Class 150 or 300 Flanged Ball Valve
Size:
1/2” through 12”
Pressure Rating:
ANSI Class 150 and 300
Ends:
150# and 300# Flanged
Body Materials:
316 Stainless Steel, Carbon Steel, Alloy 20, Hastelloy C, Various Alloys
Ball & Stem Materials:
316 Stainless Steel, Alloy 20, Hastelloy C, Various Alloys
Seat Materials:
25% Carbon Filled Teflon, 15% Glass Filled Teflon, Teflon, PEEK
Standards:
ASME B16.34, API 598, API 607, NACE MR0175/ISO 15156
Description
The AVCO 9100 series ball valve is a flanged two 2-piece cast ball valve with integral flanges in stainless steel 316 (CF8M), Carbon steel (WCB), Hastelloy C (CW12MW) or Alloy 20 materials. It is designed to be fire safe per API 607 and meets the requirements of ASME B16.34 and API 598. Available in ANSI class 150 & 300, the valve features a stem with blow-out proof prevention and full port ball giving minimal pressure drop during operating conditions. The packing is adjustable online to give easier maintenance and minimize plant shutdown requirements. The valve carries an ISO 5211 mount pad to accommodate most actuators and valve accessories via standard mount kits, thus giving greater flexibility when it comes to flow control and handling. Sizes ½” through 12” are available and most are in stock to ensure expedited delivery when necessary. This sturdy and robust model is ideally suited to many service applications including those encountered in the chemical, food processing, water, oil and gas industries.
