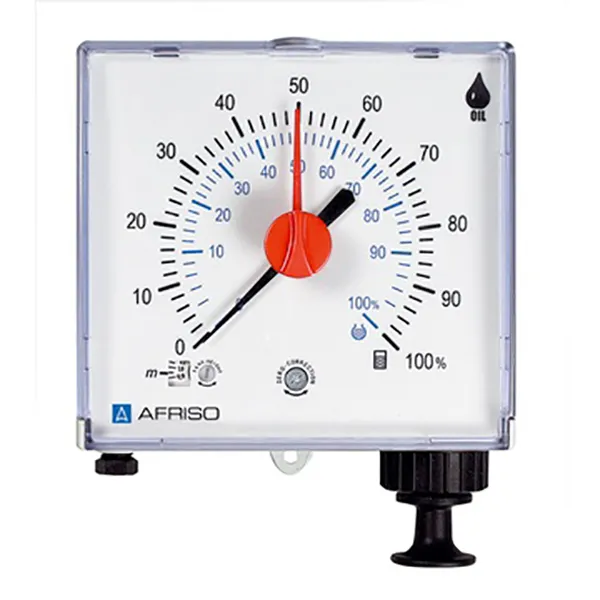

Pneumatic level indicator Unitel

Pneumatic level indicator Unitel

Universal, pneumatic level indicator with capsule movement. The tank height is fully adjustable. Measuring accuracy ±3 % of full scale value. A dual scale facilitates measurements in rectangular tanks (= linear tanks) and cylindrical tanks. Indication in % volume (Unitel) or % liquid level (Unitel for water). Impact-resistant plastic housing for wall mounting. With zero correction and integrated overpressure safety device. Reference pointer for easy consumption monitoring. Connection for pipe or hose (6 mm outside diameter, universal) for tight mounting of the measuring line (e.g. Pneumofix). Watertight up to 10 m water column.

Benefits

• No power supply required
• Reference pointer for easy consumption monitoring
• Zero correction possible
• For remote measurements up to 50 m
• Watertight up to 10 m water column - ideal for use in flood hazard areas
• Materials resistant to biofuel and biodiesel with max. 100 % FAME

Application

For continuous level measurement in tanks containing fuel oil, diesel fuel and rainwater. For tank heights from 900 to 3,000 mm (depends on version). Suitable for use in flood hazard areas and for remote measurement up to 50 m.
