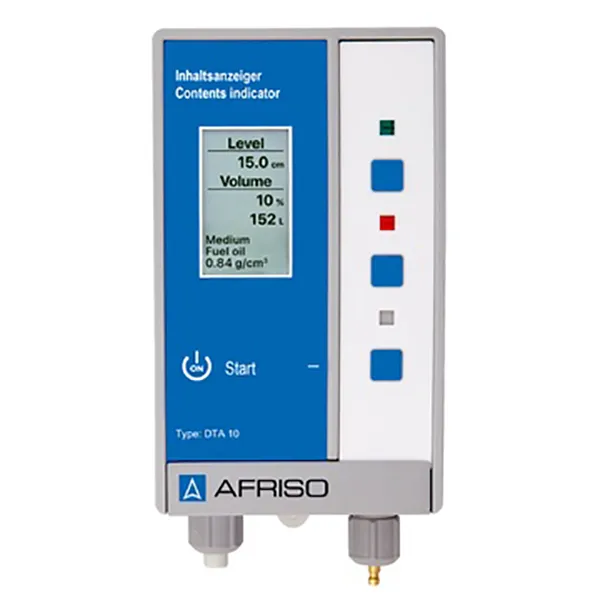

Digital tank contents indicator DTA 10

Digital tank contents indicator DTA 10

The electro-pneumatic tank contents indicator DTA 10 consists of a battery-operated control unit with digital display and a measuring line. Measured values are displayed in litres, % and liquid level (cm). Simple operation and setup via three function keys. Measurements are requested by means of pressing the control key (Push-to-Read function). If the level falls below a minimum level that is freely adjustable as a percentage, the backlight of the display flashes red to indicate an alarm during the measurement. Standard tank shapes (linear and cylindrical, horizontal) are stored. Measuring line connection for hose with 4 mm inside diameter.

Benefits

• For fuel oil EL, L, diesel fuel, biodiesel, water and other media with a density from 0.5 to 1.5 g/cm3
• Universal application in tanks of a height of up to 4 m
• Push-to-Read function: Fast start with just a push of a button
• Backlit digital display
• Measured values are displayed in litres, % and liquid level (cm)
• User interface language selectable (English, German or French)
• Location-independent battery operation - no external supply voltage required
• Remote measurements up to 15 m
• Materials resistant to biofuel and biodiesel with max. 100 % FAME

Application

Location-independent level measurement with digital display and minimum level signal (reserve level alarm) with a single measurement. Suitable for tanks up to 400 cm liquid level. For fuel oil EL, L or diesel fuel, FAME 100 % as biodiesel (EN 14214) and water (no drinking water!). In addition, DTA 10 can be used for level measurement with all non-corrosive liquids with a density from 0.5 to 1.5 g/cm3. Remote measurements up to 15 m.
