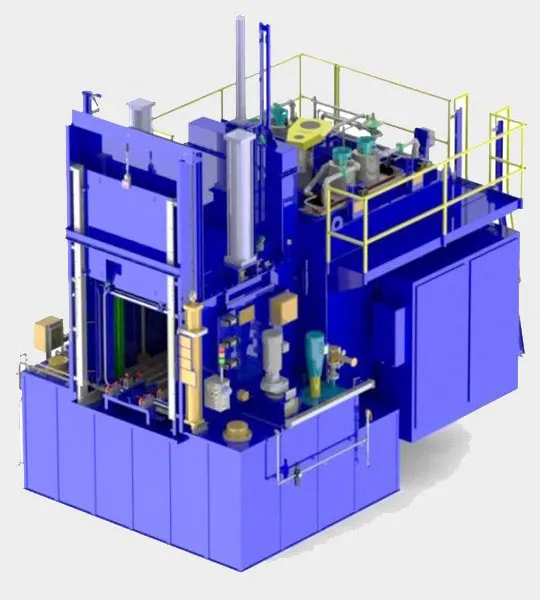

UBQ (UNIVERSAL BATCH QUENCH) FURNACE 36-48-36G

IN PROCESS IS A UBQ 36-48-36G GAS HEATED UNIVERSAL INTEGRAL QUENCH BATCH FURNACE WITH THESE STANDARD FEATURES:

• 36” wide X 48” long X 36” high load area
• 3,500# gross load
• Operating range to 1700°F, maximum 1750°F
• Gas fired, recuperated "U" tube burner assemblies
• Air cooled recirculating fan
• Atmosphere panel with manual or electronic flowscopes
• Shim stock port
• Automatic rear handler
• 3500 gallon oil quench tank
• Propeller quench agitation w/VFD, 7.5Hp
• Air to oil heat exchanger pump
• 150°F heated quench oil, 18Kw heating
• Batchmaster II controls with HMI and AB PLC
• Air conditioned control panel
• Access platform with ladder
• Plunge cool
• Top cool chamber (Optional)
