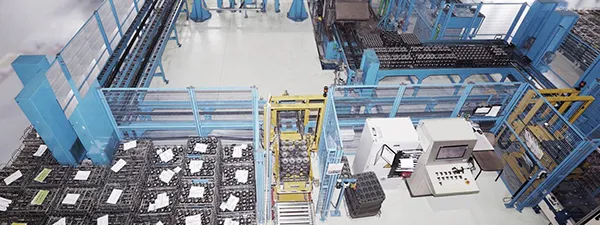

Pusher Furnaces

Thermal Treatment System for High Volumes

AFC-Holcroft is the acknowledged leader in pusher furnace technology. Every AFC-Holcroft pusher furnace incorporates many unique and innovative features that were not only pioneered by AFC-Holcroft, but are found exclusively on AFC-Holcroft equipment. Our pusher furnace designs are often imitated but never duplicated.

Metallurgical Processes:

Annealing, Stress Relieving, Solution Treating and Aging

Types of Products:

Transmission and Axle Components, Drivetrain Components, Shafts, Castings, Forgings and Engine Components

Unique Features:

• Ability to handle variable production rates and simultaneously process large numbers of different parts

• Single row to six row designs for high production volumes

• Single or multi-chamber design

• Modular design for flexibility and ease of maintenance

• Silicon carbide and high alumina segmented skid rails

• "Alligator" outer door system for positive sealing and "fail-safe" operation

• Captive chain tray transfer mechanism with sealed housing (horizontal or vertical)

• Recirculating ball nut and screw pusher mechanism designed specifically for heavy loads

• Automatic adjustment of main pusher stroke to compensate for thermal expansion and permanent tray growth

• Roof, single-flow and AFC-Holcroft's patented dual-flow sidewall fan systems

• Large diameter single-ended and U-type radiant tube systems mounted horizontally or vertically

• Internal or external recuperators

• Single or multiple quench systems (oil, water, polymer or molten salt)

• Patented "upflow" or "uniflow" quench design available

• Press quenching available

• High pressure gas quenching available (10-20 bar nitrogen)

• Pyro-Kleen preheat / pre-oxidizer

• Available in a variety of control platforms providing total data monitoring, controlling, tracking and acquisition capability.
