AFC Cable Systems

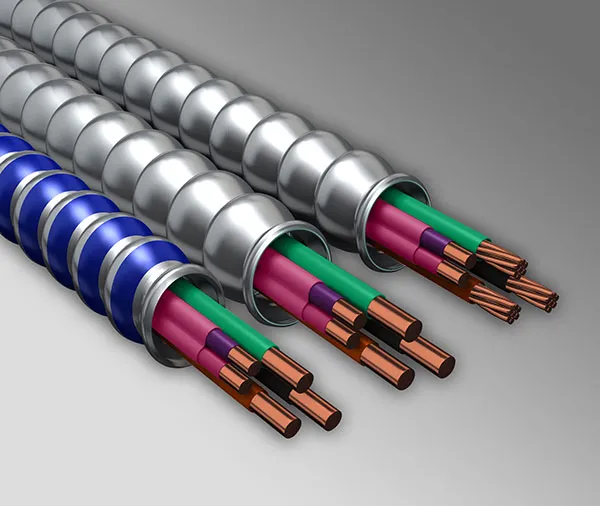

MC Luminary Metal Clad Cable

AFC Cable Systems first launched MC Luminary Cable in 2014. MC Luminary Cable is a UL Listed Type MC-PCS cable which combines both power and control circuits under one armor. These cables are primarily used in commercial construction projects such as casinos, condos, hotels, shopping centers and retail centers – although its usage can be quite versatile.

MC Luminary Cable combines power and control circuits under a single interlocked armor. This reduces installation time and materials on the job site by running one armored cable as compared to an installation that runs power circuits and a separate control circuit.

All MC Luminary products are designed for LED and fluorescent dimming systems. Multiple MC Luminary Cables can be used in daylight harvesting applications to wire multiple zone rooms which utilize building management systems to automatically dim or raise lighting at certain times. These products come in both steel and aluminum armor. Power circuits are THHN insulated conductors with a twisted jacketed pair of TFN insulated control circuits.

Features & Benefits:

• U.S. Patent 10,431,353
• Manufactured with purple and pink control conductors. Compliant with 2020 NEC® Sec 410.69.
• Save up to 30% labor and installation costs compared to traditional installation methods
• Interlocked galvanized steel strip or Interlocked aluminum strip
• Made in USA of US and/or imported materials

Applications

• Permits conductors of circuits to be placed in a cable with conductors of electric light, power, or Class 1 circuits
• LED and Fluorescent dimming systems
• Smart Buildings
