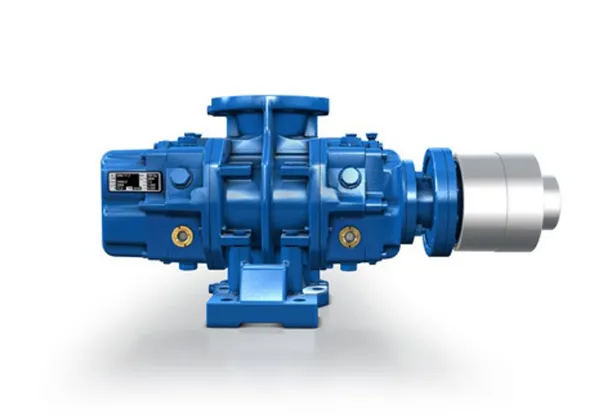

LOW PRESSURE BOOSTER SERIES GMD

GAS BOOSTER FOR LOW PRESSURE APPLICATIONS

The GMd series, made by AERZEN, is the universal gastight booster solution for the low pressure range. Equipped with a magnetic coupling, it ensures a maintenance-free sealing concept. Locking systems for sealing the drive shaft are completely eliminated and allow a low-maintenance machine concept. The separation between oil and process side is achieved by a special piston ring seal. The robust two-lobe design allows a design pressure of 7.0 barg according to AD2000/DIN EN 13445. 16 sizes guarantee optimum efficiency and operation conditions for every design case.

DESIGN

Nodular iron, steel casting or stainless steel. Housing with circular flanges and O-ring seals.

SEALINGS

Shaft sealing by hermetically sealed magnetic coupling. Alternatively oil-purged double-acting mechanical seal with thermosiphon cooling for torques ≥ 550 Nm.

DIRECTION OF FLOW

Vertically downwards.
