Aentron GmbH

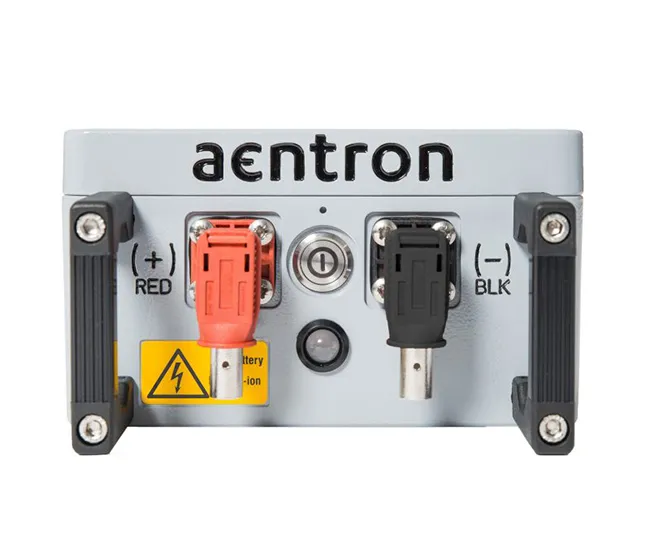

12 V MOBILE-BATTERY – A12010M

12 V MOBILE-BATTERY – A12010M (100 A)

STANDARD ENERGY-MODULE

SCALABLE, SAFE, TURN-KEY READY

Module: 14.4 V DC – 1002 Wh – 69.6 Ah

• Parallel scalable and modular-system (max. 4 kWh) – industrial and mobile battery

• Ideal for Maritime, UPS, and mobile machine applications

• Mobility Compliance – Industrial robots, mobile machines

• High energy and power density

• Ready-to-Install

• Tightness: IP 66

• Robust design - aluminium die cast housing

• Flame and fire resistance up to 30 mins

• Compact and innovative design

• Innovative cooling concept

• Stand-Alone-capable

• Max. 60 V DC configuration

• Intrinsic safety / system isolation (pole shutdown during transport)

• Communication and Wake-up: E-Switch / LED SoC Status

• State-of-the-Art Battery Management System:

• voltage, current, and temperature management

• Service free operation: Installation, Service and Disposal

• Compliance: UN 38.3, CE, RoHS, IEC 61508 SIL2, UL 94 V0

• Made in Germany
