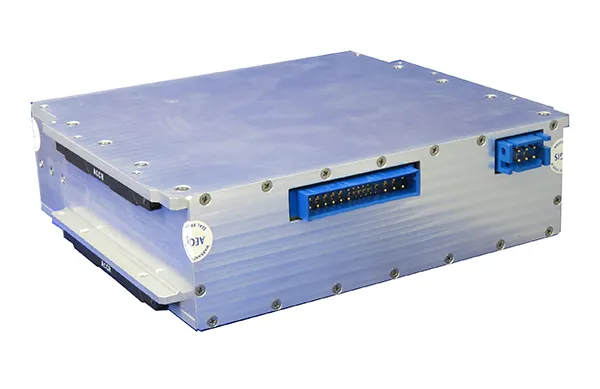

CWA401 Enclosed Case Power Supply

CWA401Enclosed Case Power Supply

Features:

• AC‐DC Power Supply
• Three Phase 60Hz/400Hz 115/208Vac Input
• 3 DC Outputs, 750W Max Combined Output
• 115Vac/208Vac 3‐phase input.
• MIL‐Std‐704A*
• Mil‐Std‐810F environmental specs. *
• Mil‐Std‐461E EMI specifications. *

Product Description

This chassis pluggable slide-in filtered AC-DC power converter card has three DC outputs. The +5Vdc and +12Vdc outputs have external remote sense connections to allow regulation at the point of load. Each DC output has monitoring for voltage and current and is an internal temperature sensor. All of that data can be accessed via an I2C communication bus. This COTS solution works well for defense applications and is designed to meet applicable portions of Mil-Std-704A input, MIL-STD-810F vibration and shock, and MIL-STD-461E EMI requirements.
