Aegis Power Systems Inc

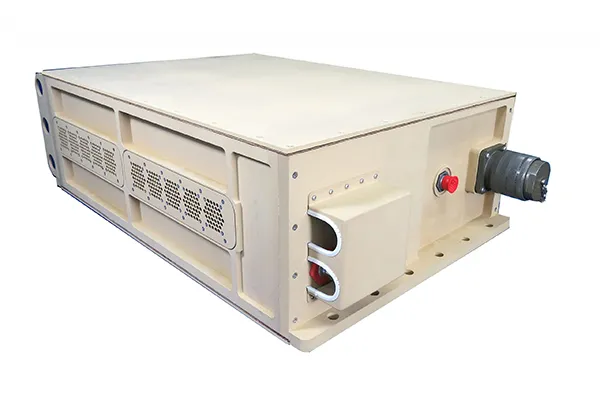

CTA803 Enclosed Case Power Supply

CTA803Enclosed Case Power Supply

Features:

• AC‐DC Power Supply
• Three Phase 50/60Hz 208Vac Input (Line‐Line)
• +28 Output, 9000W Max
• Water Resistant (Sealed Enclosure)
• MIL‐STD‐810F Environmental *
• MIL‐STD‐461F EMI *
• MIL‐STD‐1275E +28V Vehicle Power *
• MIL‐STD‐1472F Safety Markings *

Product Description

This ruggedized military Commercial Off the Shelf (COTS) power supply operates from a 3-Phase 208Vac input. The single 9000W output capability is the power supply solution for military COTS applications. It is designed to meet the environmental requirements of IL-STD-810F and the EMI requirements of MIL-STD461F. In comparison to other power supplies using conventional technology, this package provides its users with higher efficiency (83% typical), less weight and higher power output. This power supply is designed to power military 28Vdc electronic equipment including communications and vehicular onboard power.
