Cellular router
- 2G / 3G / 4G cellular router with auto-fallback
- WiFi interface 802.11n (MIMO 2T2R), 2.4 / 5 GHz
- Advanced security (VPN, Firewall, radius ...)
- Automatic cellular WiFi switching
Introduction

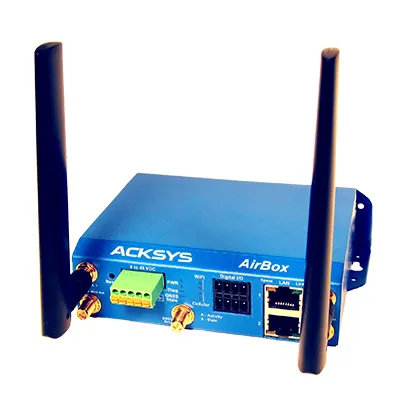

AirBox LTE is a cellular router equipped with a dual-band WiFi interface (2.4 / 5 GHz), a GNSS multi-constellation interface (GPS, GLONASS ...), 2 Ethernet ports 10/100/1000 and 2 inputs and 2 isolated outputs. It is designed for industrial applications (industry 4.0) and mobility (buses, vehicles ...).
M2M and IIoT : AirBox LTE has WiFi and cellular wireless interfaces to ensure maximum flexibility for industrial applications. It allows remote and secure access to all devices connected locally to the router. Its WiFi interface, configured in access point mode, also offers secure access to the network from a tablet. Its 4 GPIOs make it possible to remotely control equipment or rebuild reports.
Mobility : AirBox LTE is equipped with high-speed wireless technologies for transmitting data to and from vehicles.
For bus applications, AirBox LTE makes it possible to pool all data flows (SAE, ticketing, PIS, CCTV ...) on a single router. Its WiFi roaming capabilities (
High availability: its multiple redundant interfaces (2 Ethernet ports, 2 power inputs, 2 SIM cards) and its integrated watchdog guarantee a perfect continuity of operation.
Administration and product monitoring can be done directly from a web browser or from WaveManager.
- Fast WiFi roaming (
- Resistance to shocks and vibrations (EN61373)
- Dual Wide Range Redundant Power Input (+9 to +48 VDC)
- Compact housing, wall mounting or DIN rail
- 2 isolated inputs + 2 isolated outputs
