Accutek Packaging Equipment Company, Inc.

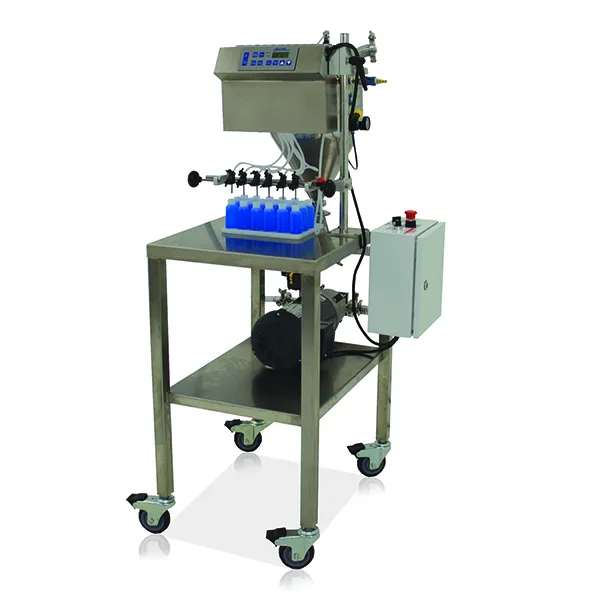

Mini-Pinch filling machine

The Mini-Pinch is a filling machine best suited for filling aqueous solutions, thin and light oils. The Mini-Pinch is a six-head, timed flow volumetric filler that has a fill rate up to six ounces per second. An experienced operator can fill up to two thousand five hundred bottles per hour; it is also highly accurate even when filling 10 ml. Bottles. This pinch valve filling machine can be autoclaved, and it’s available in a pneumatic configuration.

Our Mini-Pinch filling machines come complete with adjustable tabletop stand, fill wand, individual flow control adjusters, six stainless steel fill nozzles, silicone and vinyl food grade tubing, pinch valve system, an easy to operate microprocessor, and a pump.

Features

• 6 Fill Heads
• Individual flow controls
• Sanitary stainless-steel manifold
• Microprocessor controller
• Positive displacement pump
• Electric and air operation
• Stainless-steel fill nozzles
• Stainless-steel construction
• Air Regulator

 Options

• Custom bottle guides
• All pneumatic hazardous location upgrade
• 316 stainless steel nozzles
• Custom size / shape nozzles
