Adaptive Laser Brazing

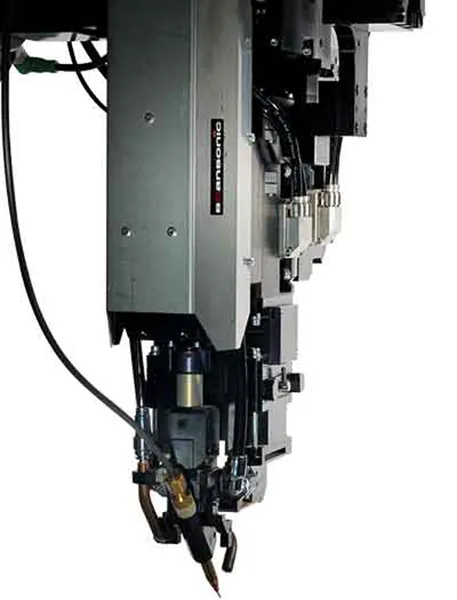

The ALO3 (adaptive laser optic) laser processing head with integrated tactile seam tracking is capable for CW-Laser in the 880 -1070 nm range. The patented tactile seam tracking process allows the ALO3 to find the beginning of seam accurately and guide the process along the seam. Component allowances with ALO3 are automatically balanced. The independent system with seam tracking integrates to every guiding machine and is controlled by digital In-/Outputs or Interbus.

ALO3 comes equipped with the SCeye package, a fully integrated imaging process monitoring system consisting of a coaxially integrated camera and process lighting. The system is completed by a powerful evaluation electronics, which is able to process the image data in real time.

Metal and Joint Profiles:

• For steel and aluminum
• Y-seam at flange welds
• Fillet weld at the Lap joint or T-joint

Acceptable Lasers:

• Diode laser from Laserline
• Solid-state laser-like rod laser or disk laser from Rofin or Trumpf
• Fiber laser from IPG
