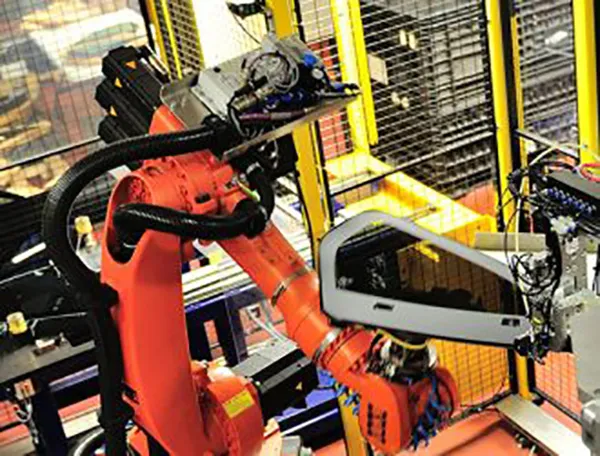

Large Robot Dispensing System

LARGE MULTI-FUNCTIONING AUTOMATION CELL WITH DISPENSING SYSTEM

Application Criteria: Design and build a comprehensive glass encapsulating production line. The cell's primary function is to automatically apply a pre-mixed primer on the perimeter of a piece of glass, then process the glass through several phases, including pre-curing, final curing, pre-heat, and post-molding cool down.

Large Robot Dispensing System Components:

• Loading station
• Dispensing system
• Multiple robots: KUKA KR16 robot for dispensing
• Carousel magazine
• Heating stations
• Encapsulation press
• Laser marking station
• Fume extraction system
• Cool down conveyor
• Control system

The KUKA KR 16 robot is a 6-axis robot with a maximum payload of 35 lbs. and a reach of 5'. This highly complex robot is used for applications where challenging robot programming is needed for specialized motion paths or with the interaction vision systems.
