Bolted Holder

Bolted Holder

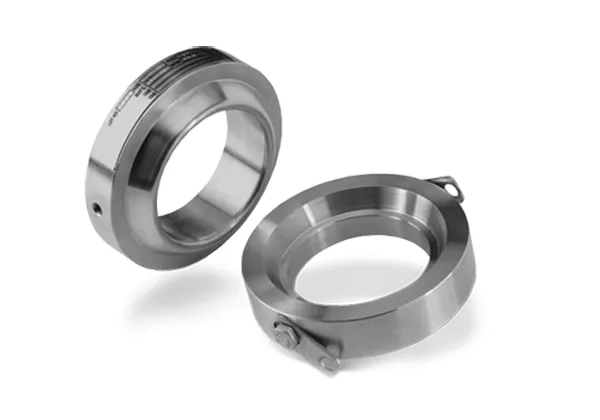

The Bolted Rupture Disk (bursting disc) Holder is an insert holder for angle style rupture disks (bursting discs).

Features

• 30° angle seat design
• Designed for use with forward acting PB or D Series metal rupture disks
• Angle seat positions disk between the inlet and outlet holder to ensure proper installation
• Refer to the back of this bulletin for available holder mounting configurations
• Materials of construction: Carbon steel and 316. Other materials available upon request
• Sizes 1/2” (13 mm) thru 24” (600 mm) diameters
• ANSI and DIN Flange class and type specific, guards against installing an assembly into mating flanges with a different pressure rating than the rupture disk holder
• Stainless steel safety designed side clips are standard, allowing for pre-assembly of disk into holder
• Flow direction arrows on disk tag and holder provides permanent visual verification that holder assembly is properly oriented in the piping system
• Available options include: gauge tap; nipple and tee; excess flow valve; pressure gauge; J-hook; special facings and coatings
