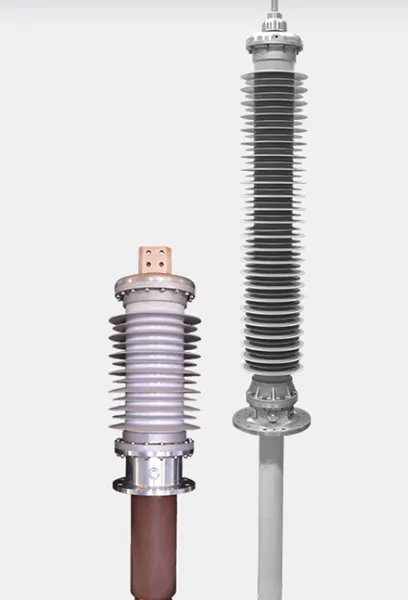

Known for their revolutionary performance, DRY TYPE Resin Impregnated Paper (RIP) /Resin Impregnated Synthetic (RIS) Condenser Bushings are oil-free transformer bushings, wherein the insulation is built directly on the conductor, and consists of high-quality crepe paper wound on the conductor in case of RIP bushings, or special grade synthetic film in case of RIS bushings. Conductive grading layers are embedded during the paper/synthetic wrapping process to form a capacitive core for the best electromagnetic field control, and further, the wound core is impregnated after a process of heat and vacuum application with special grade electrical application resins to make a completely dry RIP/RIS active part solution.
The RIP/RIS active is then assembled with hollow silicone insulators or direct moulded silicone on the active part, with the addition of mounting flange and other metal parts through specific and careful assembly processes.
