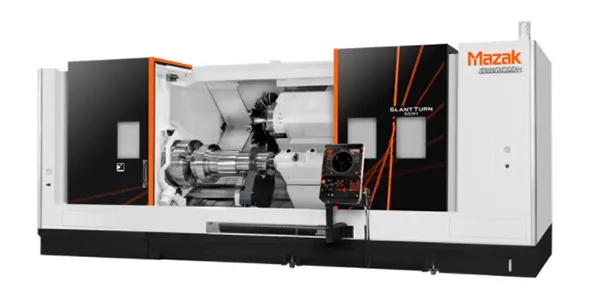

SLANT TURN 500

Heavy duty machining of large and long shaft parts CNC turning center SLANT TURN 500

• Spindle versions with different bore sizes: Ø185, Ø275, Ø320 and Ø375 mm
• Max. swing diameter Ø1,040 mm, max. machining diameter Ø910 mm and max. spindle power 45 kW (30-min operation) with a max. torque of 7,000 Nm
• Linear roller guides on the X and Z axes not only ensure maximum rigidity, but also high-precision machining even at high feed speeds.
• The bezel is offered with a maximum size of Ø410mm, making it the largest you will find on a lathe of this size.
• The machine is also available in a chuck version.
• Equipped as standard with the CNC control MAZATROL SmoothC for unsurpassed user-friendliness.
• Alternatively, the MAZATROL SmoothG is offered.
• The MAZATROL SmoothG CNC control features heat shielding and Mazak Voice Adviser.
• Standard CNC control is market dependent.
