DEA Drug Storage Cages

DEA Drug Storage Cages

When properly installed, WireCrafters Style 840 Partitions meet the US Drug Enforcement Administration's (DEA) requirements for physical security of Schedule III through V controlled substances as outlined in Title 21 CFR Sections1301.72-1301.76 physical security controls. This drug storage application of WireCrafters wire partitions is ideally suited for pharmacies, pharmaceutical companies, medical facilities, distribution centers, record storage, drug warehouses, and much more.

DEA Storage Cage Features

WireCrafters DEA approved secured storage cages feature self-closing and self-locking doors, and wire mesh walls and ceiling panels constructed of a 2" x 1" 10 gauge wire. 2" square steel support posts are spaced no more than 10' apart, with welded-on base plates for lagging to the floor. The walls of the drug storage cages have a minimum of 1 1/2" horizontal reinforcement at least every 5'. The panels mount flush to floor, and utilize heavy 3/8" hardware which is non-accessible from the exterior. WireCrafters panels are stackable to any height and clear spanning ceilings up to 30'.

DEA Cages: Flexible Configurations

The flexibility of WireCrafters Style 840 Wire Partitions makes it possible to construct a DEA controlled substance storage cage of any size or shape. The DEA cage can have a free spanning ceiling up to 30' or a ceiling of any size with vertical support tubes. Panels can also be stacked to any height so that the DEA cage can be tied into the facility's existing walls and ceiling. All of our slide and hinge doors can be made self-closing and accessible with a card reader or ten digit keypad with the installation of an electric strike or mag lock.

Key DEA Cage Features

• Self closing, self locking doors.
• Wall & ceiling panels constructed of 10 gauge wire.
• Steel support posts 2" square.

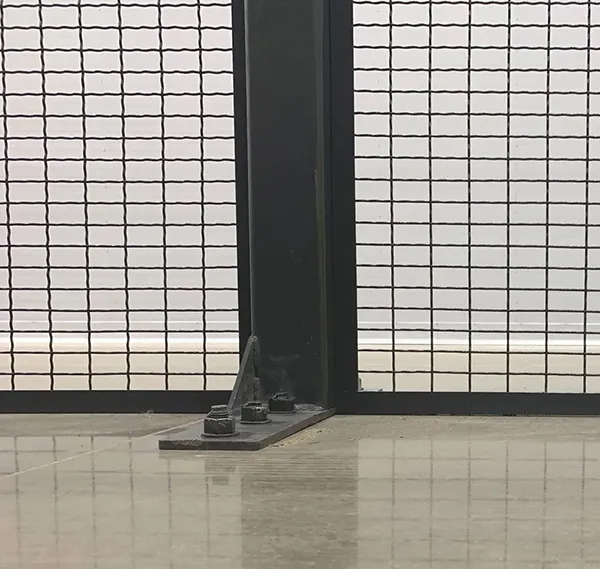

• Posts have welded on base plates for lagging to the floor.
• Posts are set no more than ten feet apart.
• Walls have minimum 1-1/2" horizontal reinforcement at least every 60 inches.
• Standard mesh has 2"x1" rectangular opening.
• Panels mount flush to floor.
• Heavy 3/8" hardware non-accessible from the exterior.
• Panels stack to any height.
• Clear spanned ceiling up to 35' across.
