WinSystems Inc.

PPM-PS394-533

PPM-PS394-533

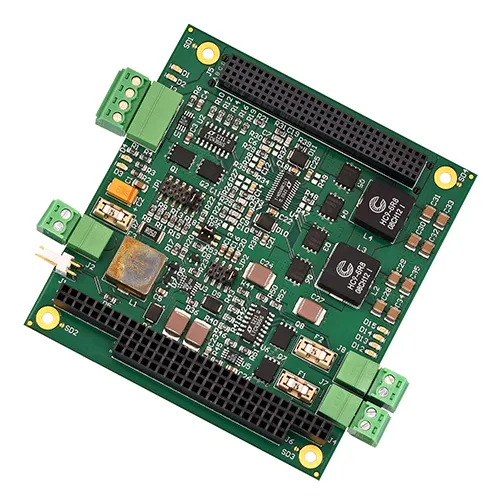

WINSYSTEMS’ PPM-PS394-533 is a dual output, wide input range, DC/DC converter with a built in battery charger and uninterrupted power supply (UPS) controller. It provides power to a single board computer (SBC) from a wind turbine, solar panel, battery or other DC source. This product can be used for off grid applications in harsh temperature ranges from -40° to +85°C.

Features

• Wide input range: 9V to 32 VDC

• Dual fused inputs accept solar panel, wind turbine, or other DC sources

• Automatically selects best input source and provides rapid switchover

• UPS operation with battery pack

• Battery charger supports Lead Acid, Li-Ion Polymer, LiFePO, and SLA chemistries

• MPPT charging supported for solar panels

• NTC thermistor input to monitor temperature

• Jumper configurable End of Charge and Float voltage

• Voltage output: +5V @ 5A and +3.3V @ 5A

• -40 to +85°C operation
