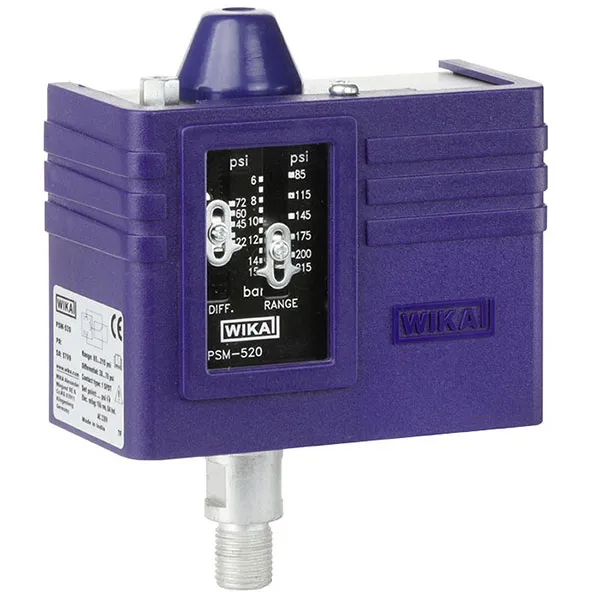

Pressure switch

Pressure switch

Applications

•   Pumps
•   Compressors

Special features

• •   Adjustable on site
  •   Protection cap for switch point adjustment
  •   Setting ranges:
    -0.4 ... +7 to 6 ... 30 bar
    -6 ...100 to 85 ... 425 psi
    -0.04 ... +0.7 to 0.6 ... 3 MPa
  •   Electrical rating up to AC 230 V, 50/60 Hz, 10 A

Description

• The PSM-520 is used in industrial control, monitoring and alarm applications.
• The switch point can be specified by the customer on site.
• The instrument can switch electrical loads of up to AC 230 V, 50/60 Hz, 10 A.
• The PSM-520 pressure switch offers many application possibilities with non-corrosive media like oil, water and air.
